Parking Lot Paving Orlando FL | New Lots, Overlays, Phasing

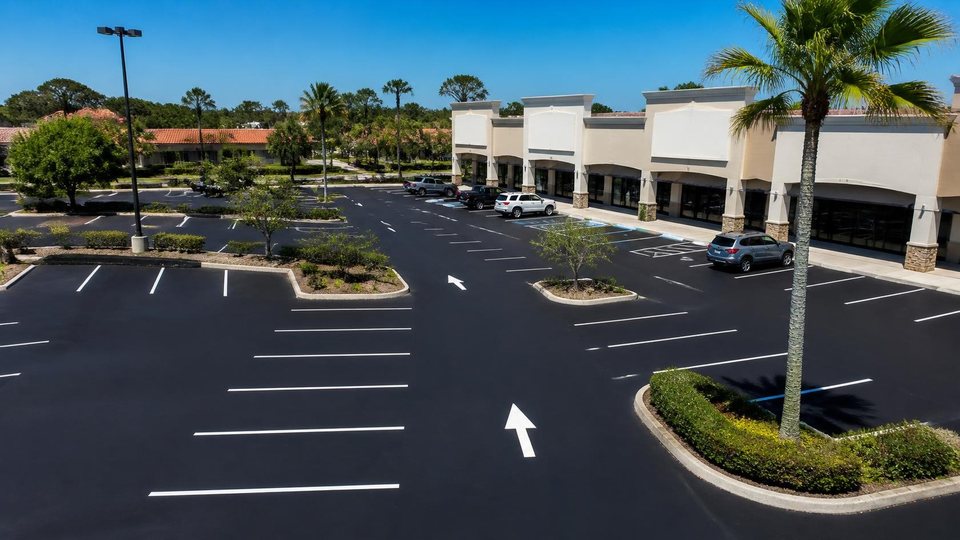

Freshly sealed and striped asphalt parking lot at a palm-lined retail plaza

Most parking lots fail in pieces. The stalls by the front door can look fine for years while the lane the garbage truck uses every morning ruts, cracks and breaks apart. The corner where water sits after an afternoon storm softens and settles. The slab in front of the dumpster enclosure crumbles under steel feet and truck forks. A lot built as one uniform section of asphalt fails first wherever the loads are heaviest or the water lingers, and the owner ends up paying to fix the same few spots again and again.

Parking lot paving done well starts from the opposite assumption: every part of the lot carries a different load and should be built for it. That holds for a new lot on a vacant pad site, for a full rebuild of a worn-out lot, and for a resurfacing project where the owner has to decide which areas can take an overlay and which have to come out entirely.

This page covers how a commercial lot is divided by traffic, what to do about dumpster pads and loading areas, how curbs, islands and drainage tie together, how the work is phased so a business stays open, how to make the overlay-or-reconstruct call, and the published price ranges for new lots, overlays and milling.

Designing the Lot Section by Traffic

The pavement section is the stack of layers under the surface: the prepared ground, the base, and the asphalt on top. On a parking lot that stack should not be identical everywhere. Car stalls carry light, slow, mostly parked loads. Main drive aisles carry every vehicle that enters the property, including the occasional truck. Truck routes -- the path delivery trucks, garbage trucks and grease-trap or fuel service trucks take from the entrance to the back of the building -- carry the heaviest axle loads on the site, often every day.

A sensible design gives car-only stall areas a lighter section, gives drive aisles more, and gives truck routes the heaviest asphalt and base on the property. Where tractor-trailers come in regularly, a heavier section still, or concrete in the truck path, is often justified. Whoever designs or prices the lot should ask how many trucks use it, what kind, and which way they drive, because a light section on a truck route is one of the most common reasons a lot fails early.

Entrances and turning areas need the same thinking. Trucks turning slowly on hot asphalt twist and scuff the surface, and vehicles that stop and start at the same spot every day -- a drive-through window, a gate arm, an exit onto a busy road -- shove the asphalt into ridges. Those spots benefit from a stronger section or a concrete apron rather than the same asphalt used in the stalls.

Dumpster Pads and Loading Areas

Dumpster pads are where asphalt loses almost every time. A front-load garbage truck stops with its heaviest axle on the same spot at every pickup, lifts a full container over the cab and sets it back down, and the container's steel feet or wheels sit on a few square inches of pavement all week. In Orlando heat, asphalt softens enough to dent under those point loads, and liquid leaking from the container breaks down the binder. The usual answer is a reinforced concrete slab under the enclosure plus a concrete approach slab long enough for the truck's front wheels to sit on while it lifts.

Loading docks face the same problem on a bigger scale. Tractor-trailers back in, stop, and sit with their landing gear down, and those dolly legs punch holes in soft summer asphalt. A concrete apron in front of the dock doors, deep enough to hold the trailer's landing gear, keeps those loads off the asphalt. Where concrete is not in the budget, the heaviest asphalt section on the site belongs here, with close attention to drainage, because dock wells and truck courts are often the low point of the property.

At smaller retail and restaurant properties the loading area may just be a side lane where box trucks unload. Even there, it pays to keep deliveries on a defined route built for them instead of letting trucks cut across light-duty stall areas that were never meant to carry them.

Curbs, Islands and Pavement Edges

The edge of the asphalt is where water gets in and where the surface starts to unravel. A lot bordered by concrete curb holds its edge. Asphalt that simply stops at grass or sand loses support and breaks off in chunks as tires ride over it. Curbing also steers water where it should go and keeps vehicles out of landscaping and off sidewalks.

Different edges suit different places. A raised barrier curb along a sidewalk or landscape island stops tires. A mountable or rolled curb works where trucks occasionally need to cross. A concrete valley gutter or flume carries water across the lot or through an island to a drain without letting it soak into the pavement. When a lot is rebuilt, settled or cracked curb sections should be replaced at the same time, because new asphalt laid against a broken curb inherits its problems.

Landscape islands need extra attention in Central Florida. Irrigation heads that spray onto the pavement keep the asphalt edge wet and weaken the base beneath it, and roots from island trees lift and crack the surface nearby. A rebuild is the right moment to turn irrigation away from the pavement, choose island plantings that will not heave the lot, and add root barriers where large trees stay.

Drainage to Retention: Grading the Lot to Shed Water

A parking lot is a large, nearly flat surface in a region that gets roughly fifty inches of rain a year, so grading is not a detail. Every part of the lot has to fall toward a curb inlet, a flume or a swale, and from there to the site's stormwater retention pond or other system. Low spots that hold water after a storm soften the asphalt and base underneath them and become the next repair.

Most commercial sites in Central Florida were built with a retention pond, and the lot's grades, inlets and pipes were designed together with that pond. A rebuild or resurfacing has to respect that design. Adding height with an overlay can change how water reaches the inlets, shrink the curb reveal until water tops the curb, and push runoff toward building entrances. The new surface also has to meet sidewalks, curb ramps and door thresholds at the right height, or it creates trip edges and steepens accessible routes. Milling before an overlay keeps the finished surface at its original elevation.

Expanding a lot is a bigger step. New impervious area -- asphalt where there used to be grass or sand -- generally triggers stormwater review, because the retention system was sized for the original site. Plan for that review before committing to extra rows of parking or a wider truck lane, not after the grading has started.

Phasing the Work So the Business Stays Open

Hotels, restaurants, grocery-anchored centers, medical offices and apartment communities cannot close their lots for a week. A phasing plan splits the lot into sections that are worked one at a time while traffic flows through the rest. A sound plan keeps at least one entrance open at all times, keeps accessible parking and an accessible route to the door available in every phase, and keeps the fire lane passable.

A typical sequence starts with the areas customers notice least -- the truck lane behind the building, far rows, overflow parking -- and saves the main entrance and the stalls by the door for a night or a weekend. Milling a section and laying new asphalt on it can often happen in one shift, but the fresh mat cannot take traffic until it has cooled, and the schedule has to allow for that. Cones or temporary markings guide drivers through reopened sections until the permanent striping goes down.

The owner's side of phasing matters as much as the contractor's. Commercial tenants need notice of which entrances and rows close and when. Apartment and HOA residents need to know when to move their cars, and a tow notice posted well in advance prevents arguments at dawn. Deliveries and garbage pickups should be rescheduled around whichever phase blocks their route.

Overlay or Reconstruct? Making the Call for a Lot

An overlay adds fresh asphalt on top of what is already there, usually after milling off the top to hold grades and after the worst spots are repaired. It works when the base underneath is still sound: the lot shows surface cracking, oxidation and wear, but it is not rutting, settling or breaking into small interconnected pieces over large areas. An overlay on a failed base cracks in the old pattern soon after, because new asphalt is only as good as whatever supports it.

Reconstruction removes the asphalt and rebuilds the base, and it is the right answer when the failure is structural: widespread cracking in a network pattern, ruts in drive lanes, soft spots that flex under a truck, or fines pumping up through cracks after rain. Core samples or test holes show how thick the existing asphalt and base are and whether the base is still intact, and they belong ahead of any large project being priced. If a lot has already been overlaid once or twice, the stacked height alone may rule out another layer.

On many lots the honest answer is both. Stall areas in fair shape take a mill and overlay, while the truck route and the dumpster approach, where the base has failed, are cut out and rebuilt with a heavier section. Treating the lot by zone puts the budget where the damage actually is. Lots that are still structurally sound can often put off both steps with sealcoating and crack filling.

Published Price Ranges for New Lots, Overlays and Milling

Published ranges for new commercial parking lot paving run 2.50 to 10.00 per square foot. The spread is wide because it covers everything from a simple car-only lot on a prepared pad to a site with heavy truck sections, concrete pads and significant grading. Resurfacing with an overlay carries a published range of 1 to 7 per square foot, with most published figures falling between 2 and 5. Milling alone, priced by depth, is listed at about 0.28 to 1.33 per square foot -- that figure comes from a single source, so weigh it accordingly.

Sources price milling and overlay separately, and no published source gives a combined mill-and-overlay figure, so do not add the two ranges together and treat the result as a quote. All of these are published ranges; the contractor prices the job after walking the lot. The biggest drivers are the condition of the base, the share of the lot that needs full reconstruction, heavy sections for truck routes and dumpster pads, curb and drainage work, phasing and night work, and stormwater review if the lot grows.

Ground-up construction -- subgrade preparation on sand, base and hot-mix lifts -- is covered on the asphalt paving page, and the Orlando asphalt paving cost guide works these ranges into sample lot budgets.

What’s Included

A site walk mapping car stalls, drive aisles, truck routes and water flow
A zone-by-zone call: overlay, mill and overlay, or full reconstruction
Core samples or test holes before a large rebuild is priced
Heavier asphalt sections for truck and delivery routes
Concrete dumpster pads, approach slabs and loading aprons where loads demand them
Curb, valley gutter and island edge replacement where sections have failed
Milling to hold finished grades at inlets, curbs, ramps and doorways
Grading checked against inlets and the site's retention system
A phasing plan that keeps an entrance, accessible parking and the fire lane open
Restriping of the finished lot to the approved layout

Why It Matters in Orlando

Central Florida's ground and weather shape every lot here. The sandy soils common around Orlando drain quickly but give little support when saturated or disturbed, and the region's karst geology makes sinkholes and settlement a known hazard, so a lot that dips in one area deserves investigation before it is simply overlaid. Summer heat softens asphalt under the standing loads of dumpster trucks, delivery trucks and parked RVs, which is why heavy-load zones matter more here than in cooler places. Afternoon storms from June through September and a hurricane season running June 1 through November 30 shape the schedule, and retention ponds on most commercial sites tie a lot's grades to its stormwater system. Add distribution warehouses along I-4 and the Florida Turnpike, and hotels and restaurants in the tourism corridors that never really close, and phasing becomes the norm rather than the exception. Each city and county in the area runs its own permitting office, so confirm requirements with the jurisdiction where the lot sits.

Parking Lot Paving in Orlando — FAQ

How much does it cost to pave a parking lot in Orlando?

Published ranges for a new commercial lot run 2.50 to 10.00 per square foot. When estimating, measure the whole paved area -- drive aisles, entrance throats, truck lanes -- not just the stalls, because each parking space plus its share of the aisle covers far more asphalt than the painted rectangle. Concrete pads, curbing, drainage structures and stormwater review are often separate line items. These are published ranges, not a quote, and the cost guide on this site shows how they apply to lots of different sizes.

Is it better to overlay a parking lot or tear it out and start over?

An overlay is usually the better value when cores show a sound base and the damage is mostly on the surface. Tearing out makes sense where ruts, soft spots and network cracking show the base has failed, and an overlay would only mirror those cracks. Many lots split the difference by zone. Ask the contractor where cores were taken and what they found, and whether milling is included so the new surface does not bury curbs or change drainage.

Should a dumpster pad be concrete or asphalt?

Concrete, in nearly every case. The slab should cover the whole enclosure and extend out far enough that the garbage truck's front wheels sit on concrete when it lifts the container, since that is where the heaviest load lands. Joints should be placed so the slab does not crack across the middle, and the pad should slope slightly so liquid drains away from the building rather than pooling in the enclosure. Replace damaged enclosure gates at the same time so haulers are not dragging them across new concrete.

Can a parking lot be resurfaced without closing my business?

Usually, with a phasing plan that works one section at a time and saves the busiest areas for nights or weekends. One limit owners rarely expect is material supply: hot-mix asphalt comes from a plant within a workable haul distance, and not every plant runs overnight, so a full night schedule depends on what nearby plants can supply. Ask early whether night production is available, and build a rain-delay plan into the phasing during the summer storm season.

How long before cars can park on a new asphalt parking lot?

Once the mat has fully cooled, which in practice tends to mean that evening or the following morning, cars can usually use it. It stays softer than mature pavement for a while, especially in summer, so avoid parking dumpsters, trailers on jacks or heavy equipment on it early, and discourage drivers from turning their wheels while stopped. Hold off on sealcoating new asphalt for several months so it can cure first. Striping can go down sooner, and temporary markings help in between.

Do I need a permit to resurface or rebuild a parking lot in Orange County?

No published source states a single rule for work in unincorporated Orange County or inside Orlando city limits, so call the building or engineering office for the jurisdiction the property is in. Properties in unincorporated areas deal with the county; those inside city limits deal with that city. Work that adds impervious area, changes grades or drainage structures, alters accessible parking or its route to the entrance, or touches a driveway connection in the public right-of-way is the most likely to need review.

How thick should the asphalt be on a commercial parking lot?

There is no single right thickness, because it depends on the traffic and the base underneath. Car stalls can carry a lighter section than drive aisles, and truck routes need the heaviest section on the site. On new developments the civil engineer's plans set the section, and the contractor should build to them. On a rebuild or overlay, ask for the asphalt thickness for each zone in writing, so competing proposals can be compared on the same terms rather than on price alone.
